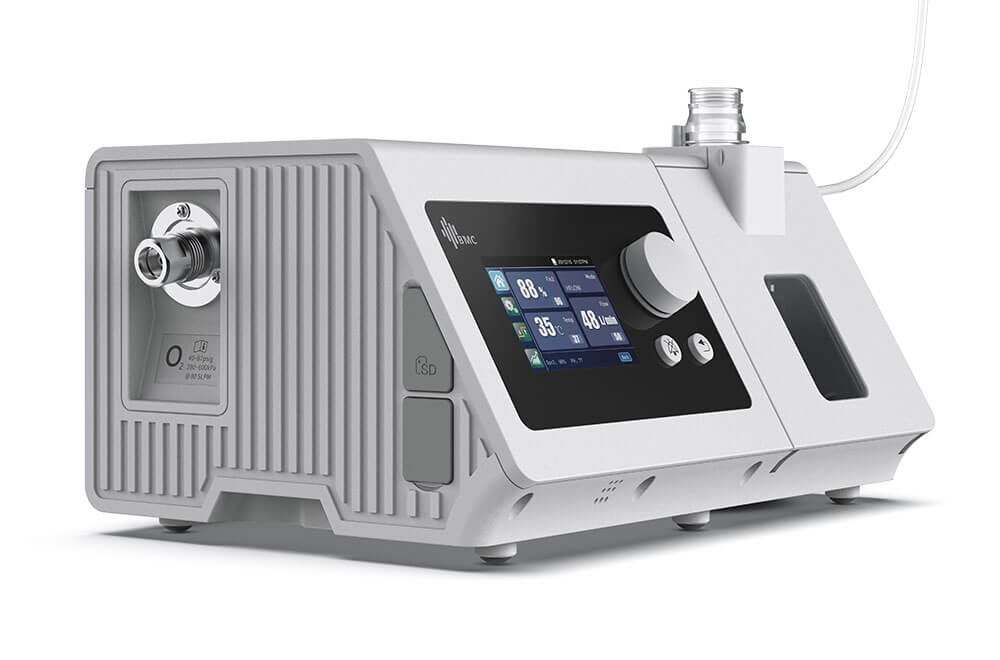

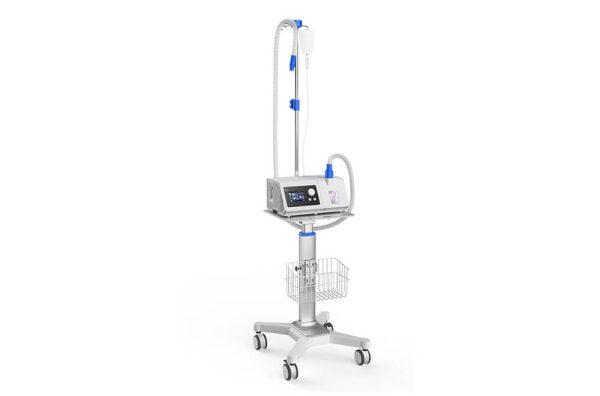

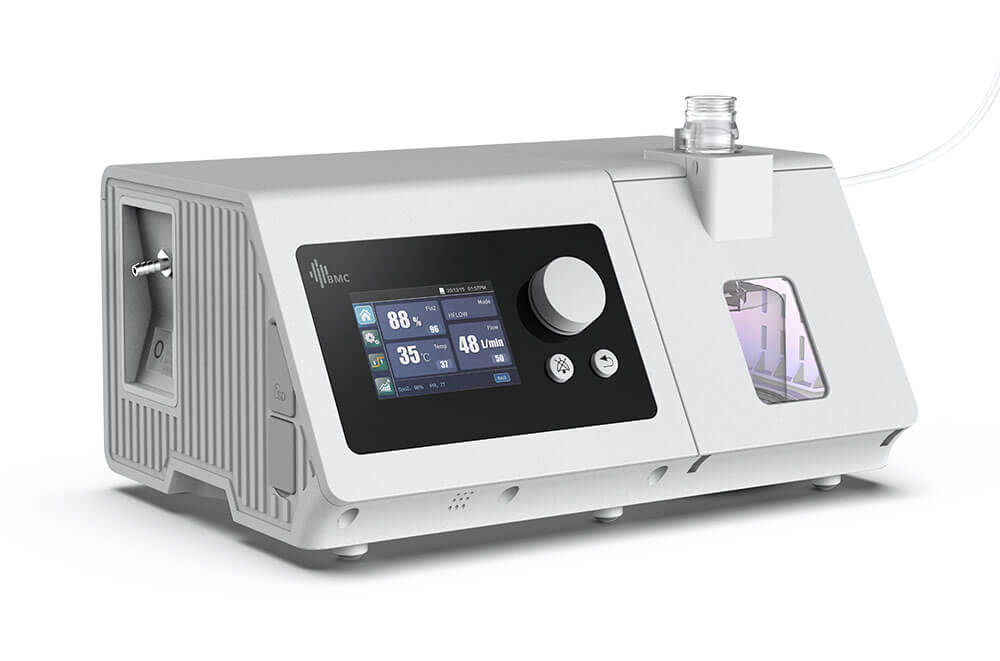

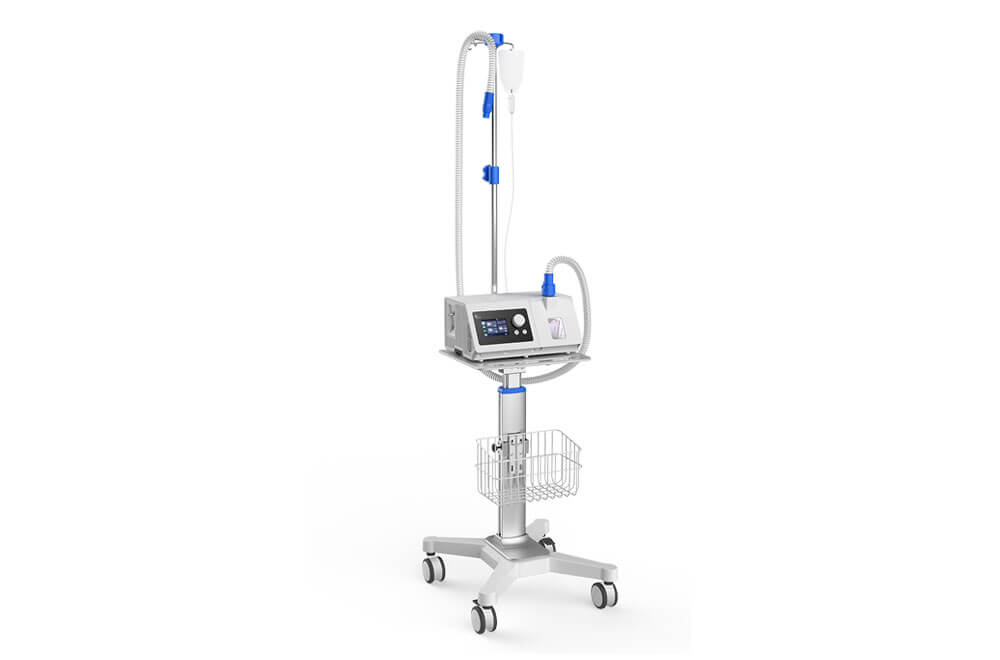

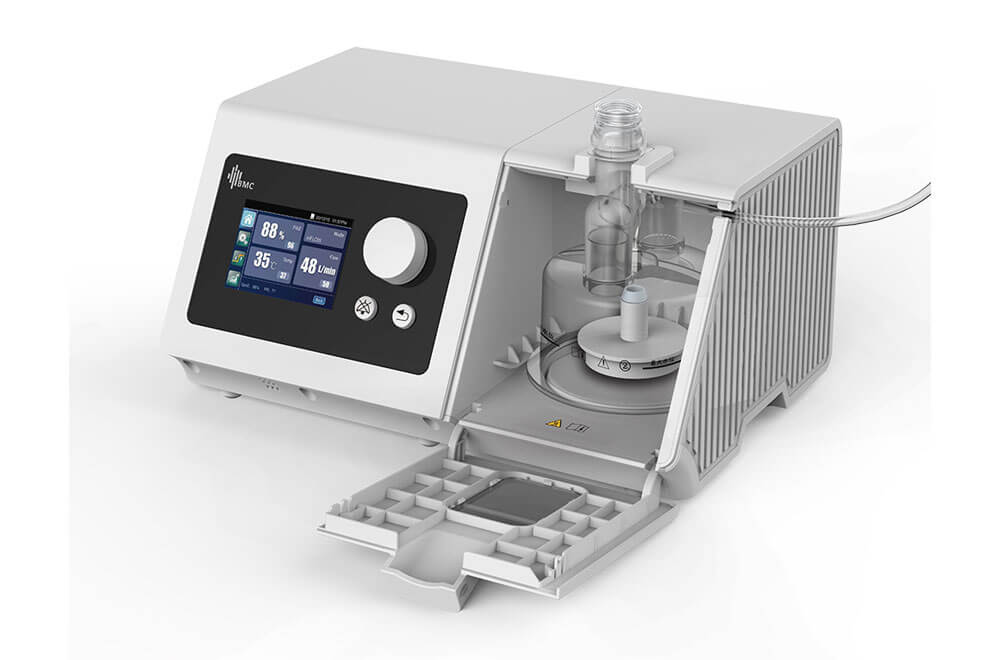

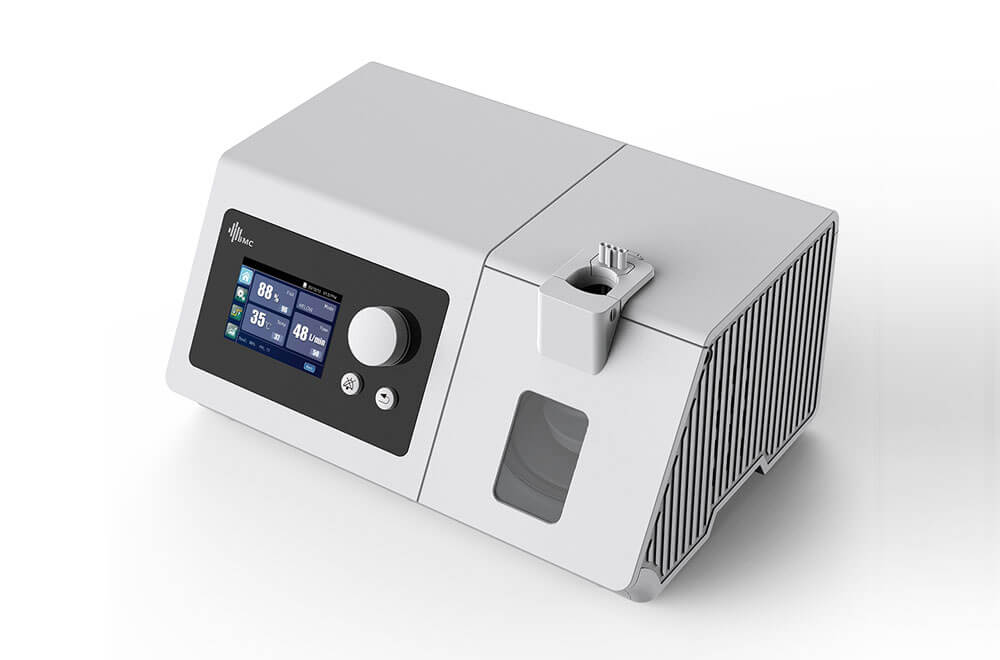

H-80 series Respiratory High-Flow Therapy Device

H-80 series Respiratory High-Flow Therapy Device - Image 3

H-80 series Respiratory High-Flow Therapy Device - Image 4

H-80 series Respiratory High-Flow Therapy Device - Image 5

H-80 series Respiratory High-Flow Therapy Device - Image 6

Model No:H-80AS / H-80A / H-80M

Key Features:excellent humidification effect,humidity compensation,AutoFlow,SmartFlow,LFlow,HFlow

Description: H-80 series Respiratory High-Flow Therapy Device is highly integrated design to meet more needs of clinical treatment.

Brand: BMC

Short Specifications

Flow Range: 10 – 60 L/min (adjustable)
FiO₂ Range: 21 % – 100 % (selectable)
Humidification: Heated humidifier, 300 mL chamber, 95 % ± 5 % relative humidity
Temperature Range: 31 – 37 °C (adjustable)
Noise Level: < 45 dB at 60 L/min (QuietBlower™)
Display: 5″ color LCD touchscreen with real-time parameter monitoring
Alarms: Low/high FiO₂, high/low flow, temperature deviation, power failure

Category HFNC

₹15,000.00

DeVilbiss 5 LPM Oxygen Concentrator

Detail

H-80 series Respiratory High-Flow Therapy Device is a highly integrated design to meet more needs of clinical treatment. H-80 series Respiratory High-Flow Therapy Device is suitable for patients with spontaneous breathing. It can effectively treat patients by providing a certain flow of heated humidified breathing gas. These patients include patients with humidification therapy, oxygen therapy, endotracheal intubation, and tracheotomy (not for life support).

H-80 series Respiratory High-Flow Therapy Device has accurate temperature control technology, excellent humidification effect, and 7-level humidity compensation to easily deal with various geographical environments. While meeting the treatment effect, it brings the ultimate comfort experience.

With the unique AutoFlow and SmartFlow modes, the device is more intelligent.

*AutoFlow mode: Allows medical staff to easily respond to sudden respiratory events, reducing the pressure on medical care to a certain extent.
*SmartFlow mode: the oxygen flow rate can be switched between inhaling and exhaling so that patients with high flow rates are more comfortable and at the same time use oxygen resources efficiently.
LFlow mode: suitable for children.
HFlow mode: up to meet various clinical needs.

H-80 series Respiratory High-Flow Therapy Device has just added comprehensive monitoring indicators, and the interaction is more convenient and efficient.

The perfect after-sales service engineer team makes your use more worry-free.

Features

The flow rate can reach, meeting the clinical needs.
Precise temperature control, excellent humidification effect, 7-level humidity compensation, easy to deal with various geographical environments.
*Unique and advanced modes: AutoFlow and SmartFlow, which are more automatic and intelligent.
Child-friendly mode: LFlow
High cost-effective, high quality, and perfect after-sales team

Configurations

Model	H-80AS	H-80A	H-80M
Adjustment method of oxygen concentration	Auto	Auto	Manual
Flow	Monitorable, adjustable	Monitorable, adjustable	Monitorable, adjustable
Flow range	2 – 80 L/min	2 – 80 L/min	2 – 80 L/min
Oxygen concentration adjustment range	21%-100%	21%-100%	21%-100%
Temperature output range	29 – 37 °C	29 – 37 °C	29 – 37 °C
Temperature adjustment gear	9 steps adjustable	9 steps adjustable	9 steps adjustable
Screen size	3.5 inches	3.5 inches	3.5 inches
Trend review function	1 day; 3 days; 7 days	1 day; 3 days; 7 days	1 day; 3 days; 7days
Oxygen concentration	Monitorable, adjustable	Monitorable, adjustable	Monitorable
Temperature	Monitorable, adjustable	Monitorable, adjustable	Monitorable, adjustable
