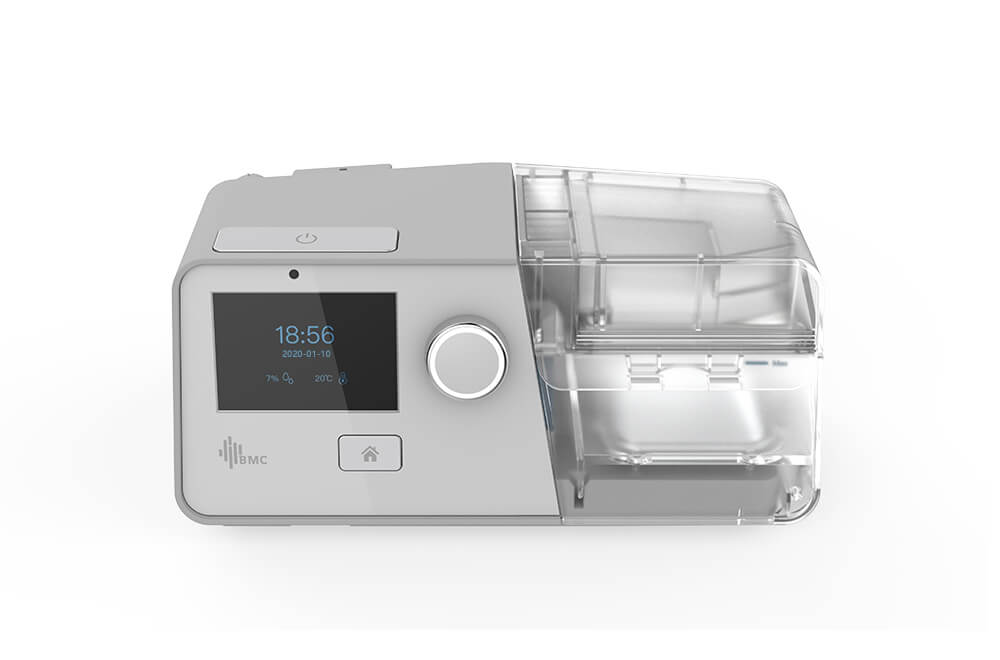

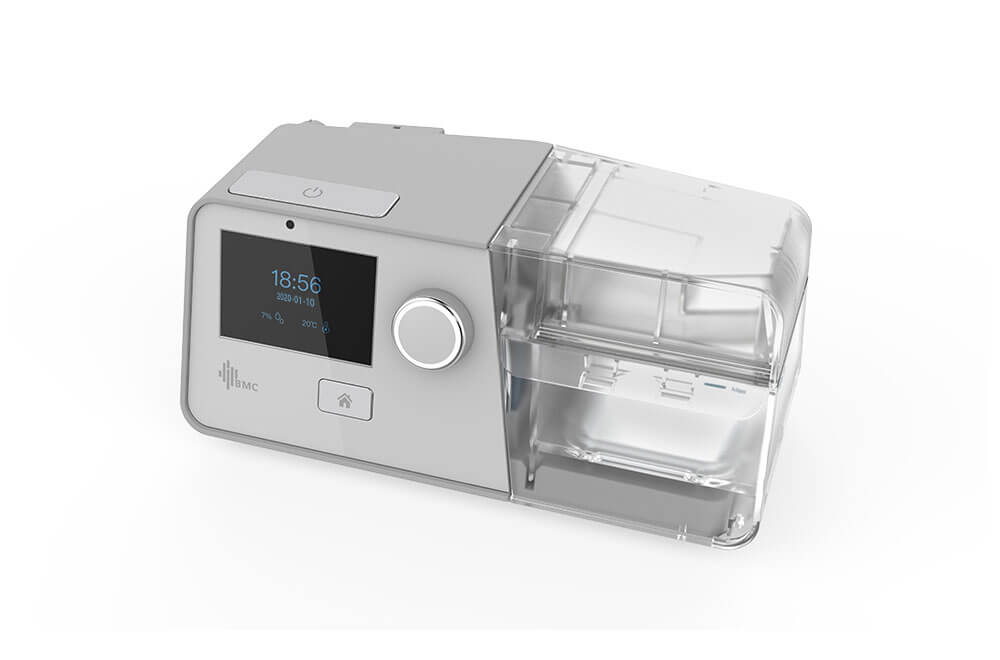

G3 BPAP System (G3 B25VT/G3 B30VT)

Features

Effective Performance

• S/T Mode
   The device follows the patient’s spontaneous breathing. However, if there is no inhalation for a certain period of time, the device will give forced ventilation to ensure the minimum ventilation volume.
• Target Tidal Volume Function
  According to the patient’s need, G3 can set the Target Tidal Volume and the device will automatically adjust the pressure support level to reach the preset tidal volume, so as to ensure a better ventilation effect. According to the patient’s need, G3 can set the Target Tidal Volume and the device will automatically adjust the pressure support level to reach the preset tidal volume, so as to ensure a better ventilation effect.
• Auto Leak Compensation

ntelligent comfort features

• Brand new humidifier design keeps the G3 compact and attractive

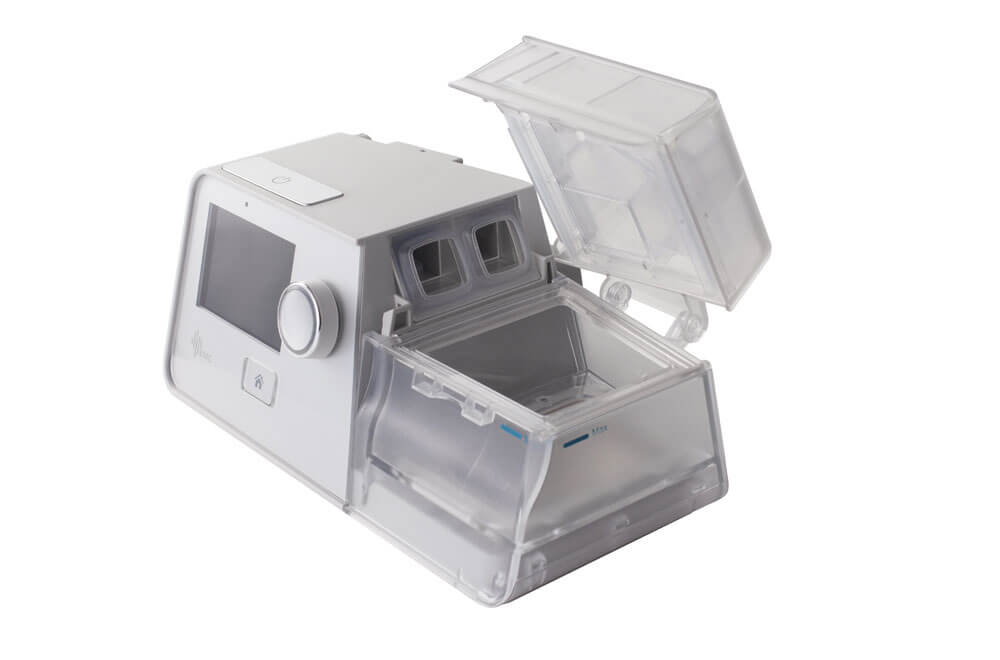

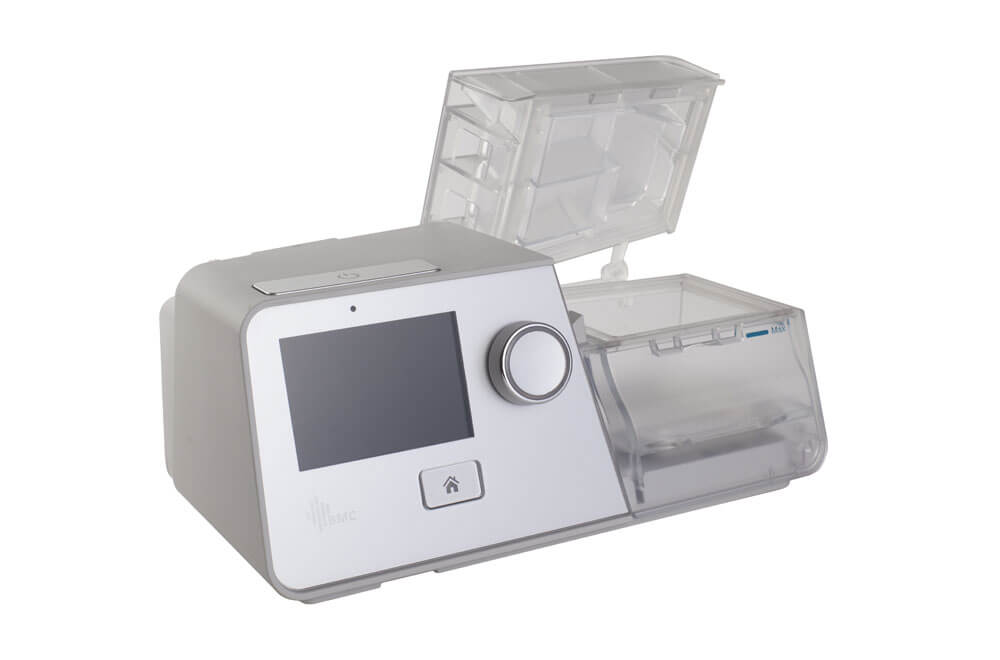

• The innovative PUSH water chamber is simple to use.
   Water can be added without removing the water chamber for ease of use.

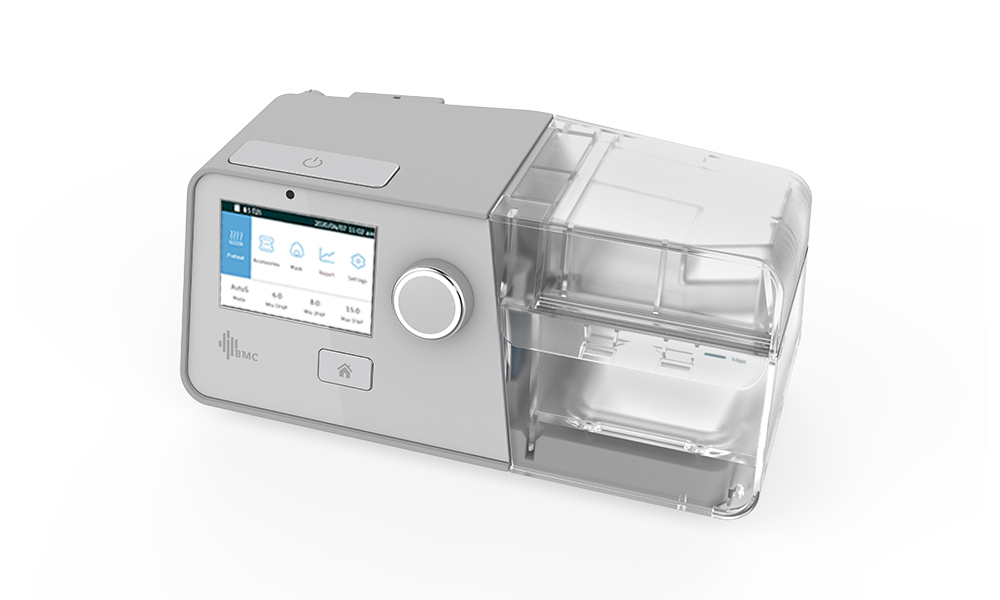

• Humanized UI Design

Configurations

• Supported Modes:

  • Spontaneous (S): Delivers patient-initiated breaths at prescribed IPAP/EPAP

  • Timed (T): Delivers scheduled breaths at a fixed backup rate

  • Spontaneous/Timed (S/T): Hybrid mode with patient-triggered breaths and backup rate

  • Pressure Control Ventilation (PCV): Pre-set pressure level mandatory breaths

  • CPAP: Continuous positive airway pressure

• Humidifier Controls: Seven humidity levels; compatible with heated tubing for optimal moisture delivery

• Ramp Settings: Adjustable ramp start pressure and duration; AutoRamp to automatically adjust

• Data Connectivity: Built-in Bluetooth® for wireless sync to BMC SleepApp (iOS/Android); SD card slot for manual export
