Discription: Universal AC/DC adapter designed for CPAP, BiPAP, and ventilator devices, providing reliable power conversion and surge protection.
Brand: BMC
Input Voltage: AC 100 – 240 V, 50/60 Hz
DC Output Voltage: 24 V ± 0.5 V (standard); 12 V ± 0.3 V (optional variant)
DC Output Current: 2.5 A (standard); 5 A (12 V variant)
Efficiency: ≥ 90 % at full load
Protection: Overvoltage, overcurrent, short-circuit, and thermal shutdown
Connector Type: 5.5 × 2.5 mm DC barrel plug (standard); 5.5 × 2.1 mm available on request
LED Indicator: Green “Power On,” Red “Fault”
Operating Temperature: 0 – 40 °C
Storage Temperature: –20 – 80 °C
₹2,000.00

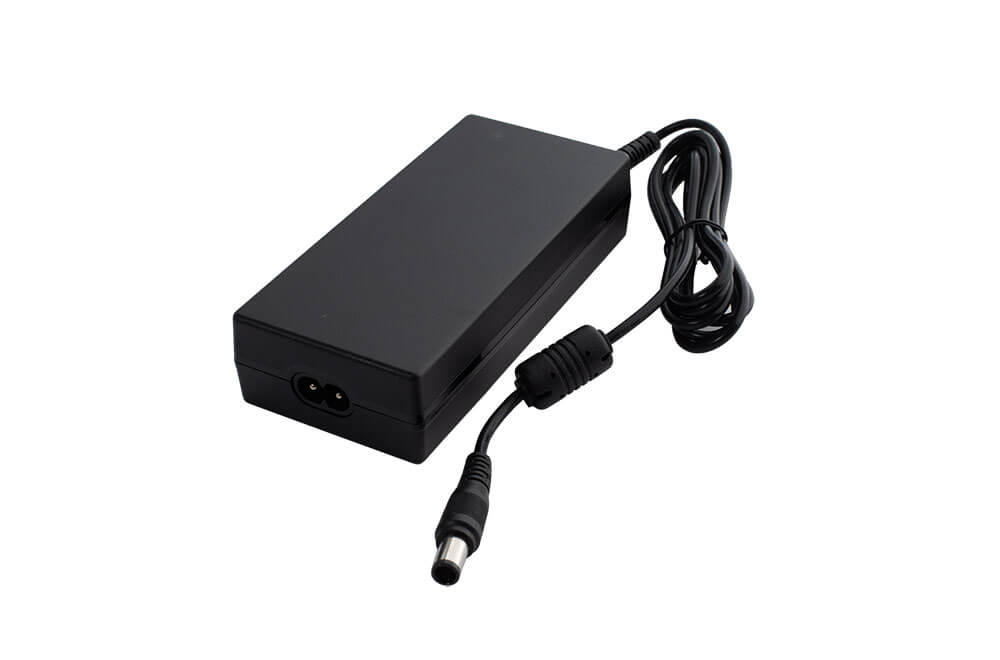

The AC DC Power Adapter (AD-YY) is engineered to provide stable, efficient power for a wide range of BMC respiratory devices, including CPAPs, BiPAPs, and non-invasive ventilators. Its universal AC input (100–240 V, 50/60 Hz) makes it suitable for use in any country, eliminating the need for multiple adapters when traveling. The adapter delivers a regulated DC output of 24 V / 2.5 A (with variants available at 12 V / 5 A), ensuring consistent performance under varying line voltages.
Built-in surge protection shields connected devices from voltage spikes, while overcurrent and short-circuit prevention protect both adapter and equipment from damage. An integrated LED indicator provides quick visual confirmation of power status (green for “OK,” red for fault). Its compact design (120 × 50 × 25 mm) and lightweight construction (~250 g) make it easy to pack into travel bags or store in tight spaces.
Universal Input Voltage: Accepts AC 100–240 V, 50/60 Hz—ideal for global use.
DC Output: Regulated DC 24 V / 2.5 A (adjustable models available for 12 V / 5 A), compatible with most BMC devices.
Surge & Short-Circuit Protection: Built-in overvoltage, overcurrent, and short-circuit safeguards to protect both adapter and connected device.
Lightweight & Compact: Weighs ~250 g with slim profile (120 × 50 × 25 mm) for easy transport.
